Chemical transport type composite hose
Polytetrafluoroethylene lined - chemical transport type
It is specifically designed for the transportation of the vast majority of chemicals, hydrochlorides and acids, etc,The PTFE lining and stainless steel inner ring are designed to be free from corrosive chemical media
Keyword：
Chemical transport type composite hose
Category：
Discription
The composite hose independently developed by Tianhua New Material Technology Co., Ltd. is a new generation of fluid transportation solution that combines light weight, high strength and multi-functionality. Through the innovative design of multi-layer composite materials, the product breaks through the technical limitations of traditional metal and rubber hoses, and is widely used in petrochemical, shipping, food and medicine, agricultural irrigation and industrial manufacturing, redefining the safety standard of fluid transmission with excellent performance.
The composite hose adopts the precision stacking process of “functional layer + reinforcement layer + protection layer” to realize the comprehensive optimization of performance:
lining layer:PTFE, food-grade polyurethane and other special materials, resistant to strong acids, alkalis, oils and solvents, to ensure that the medium is pure and free of pollution.
Reinforcement layer:high-tension synthetic fiber and stainless steel wire spiral winding, giving the hose ultra-high pressure-bearing capacity (up to 4.0MPa), anti-negative pressure performance increased by 60%.
Cover:UV-modified TPU material, with wear-resistant, anti-static, weather-resistant characteristics, adaptable to -50 ℃ to +150 ℃ extreme working conditions.
Specification parameters
Tube structure and materials
| Structure name | Materials |
| Inner steel ring | SS 316 |
| Inner surface layer | PTFE,FEP and Hostaflon |
| Pipe body reinforcing layer | Polypropylene fabrics and foil |
| Coat | PVC coated polyester |
| Outer steel ring | Galvanised steel or SS316 |
Technical parameters
| Maximum stretching amount | 10%(under experimental pressure) |
| Resistance | <10 Ohm p/lgt |
| Maximum distortion degree | 10°p/m |
| Vacuum degree | 0.9bar |
| Minimum burst pressure | Five times the allowable working pressure |
| Design temperature | -30℃ to 100℃ |
| Identify colors | red |
Product series
P/N | Duty | N.D. | Max.W.p. | Bending radius | Weight | Max.length | ||||
|
| Inch | mm | Psi | bar | Inches | mm | Kg/m | Inches | m |
Pxxxx1001223107 | Light load | 1 | 28 | 100 | 7 | 4.9 | 125 | 0.85 | 65 | 20 |
1-¹/2 | 40 | 100 | 7 | 5.9 | 150 | 1.15 | 100 | 30 | ||
2 | 50 | 100 | 7 | 7.9 | 200 | 1.3 | 100 | 30 | ||
2-¹/2 | 65 | 100 | 7 | 8.3 | 210 | 2.2 | 100 | 30 | ||
3 | 80 | 100 | 7 | 11.8 | 300 | 2.7 | 100 | 30 | ||
4 | 100 | 100 | 7 | 15.7 | 400 | 4.4 | 100 | 30 | ||
Pxxxx1001223110 | Standard | 1 | 28 | 150 | 10.5 | 4.9 | 125 | 0.95 | 65 | 20 |
1-¹/2 | 40 | 150 | 10.5 | 5.9 | 150 | 1.7 | 100 | 30 | ||
2 | 50 | 150 | 10.5 | 7.9 | 200 | 1.8 | 100 | 30 | ||
2-¹/2 | 65 | 150 | 10.5 | 8.3 | 210 | 2.9 | 100 | 30 | ||
3 | 80 | 150 | 10.5 | 11.8 | 300 | 3.5 | 100 | 30 | ||
4 | 100 | 150 | 10.5 | 15.7 | 400 | 5.5 | 100 | 30 | ||
Pxxxx1001223114 | Heavy load | 3 | 80 | 200 | 14 | 13.8 | 350 | 4.5 | 100 | 30 |
4 | 100 | 200 | 14 | 15.7 | 400 | 7.9 | 100 | 30 | ||
5 | 125 | 200 | 14 | 20.1 | 510 | 9.7 | 100 | 30 | ||
6 | 150 | 200 | 14 | 22.6 | 575 | 12.4 | 100 | 30 | ||
8 | 200 | 200 | 14 | 31.5 | 800 | 21.8 | 100 | 30 | ||
10 | 250 | 200 | 14 | 39.37 | 1000 | 26.7 | 65 | 20 | ||
12 | 300 | 200 | 14 | 47.24 | 1200 | 32 | 59 | 18 | ||

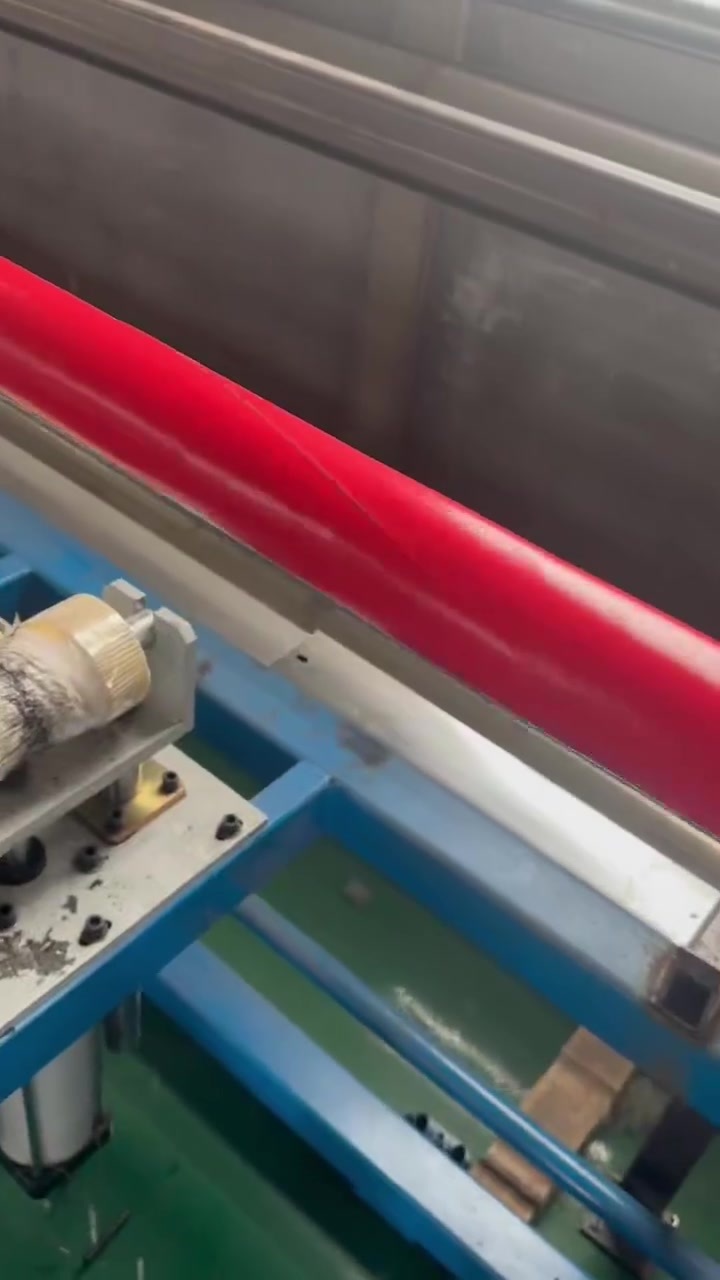

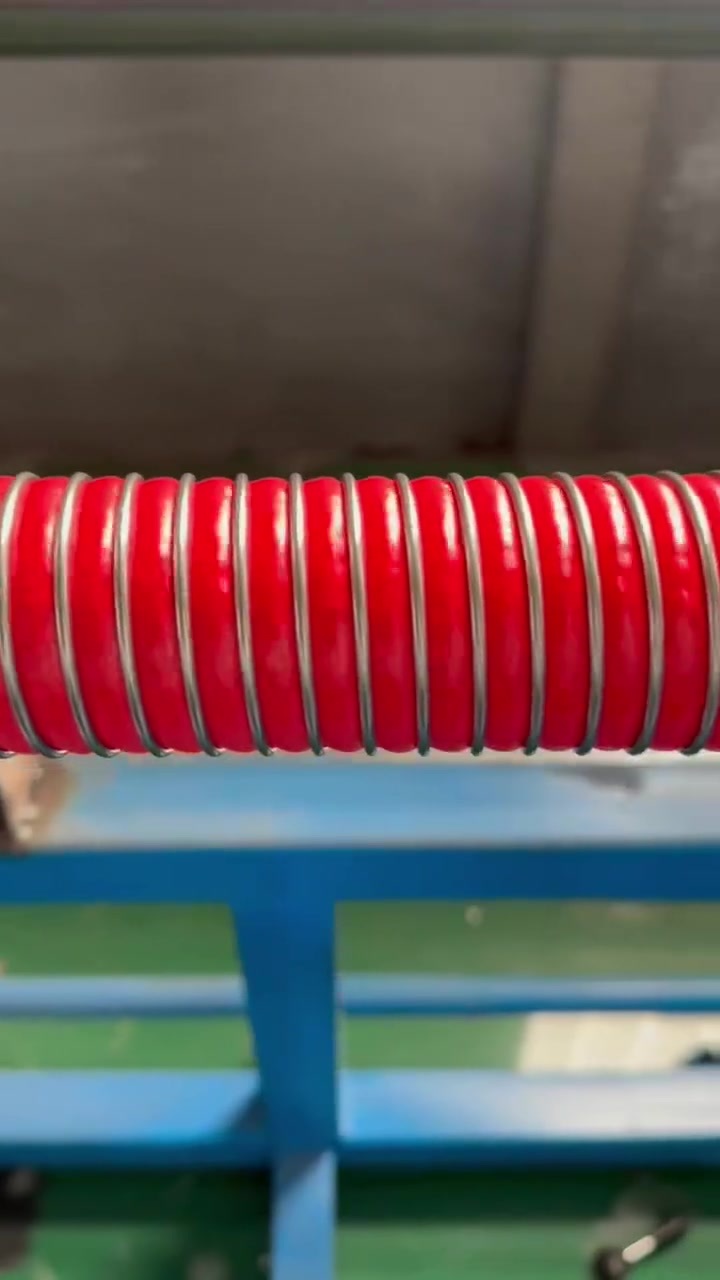

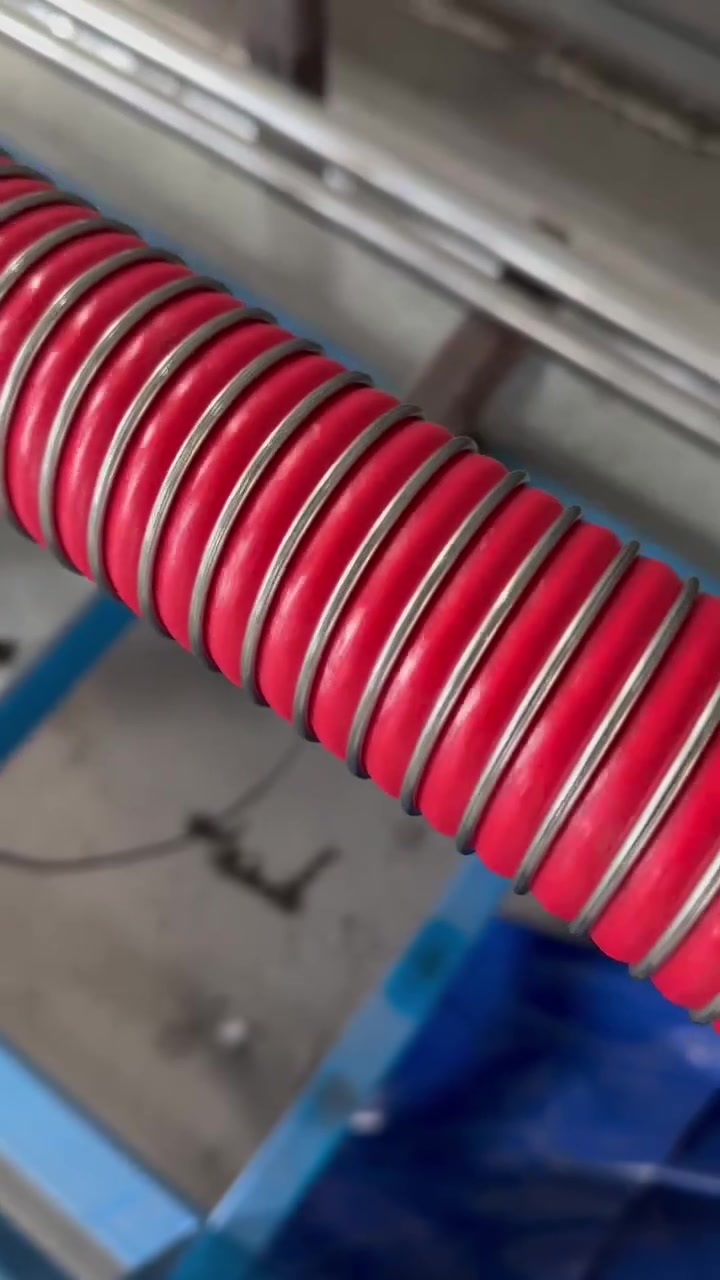

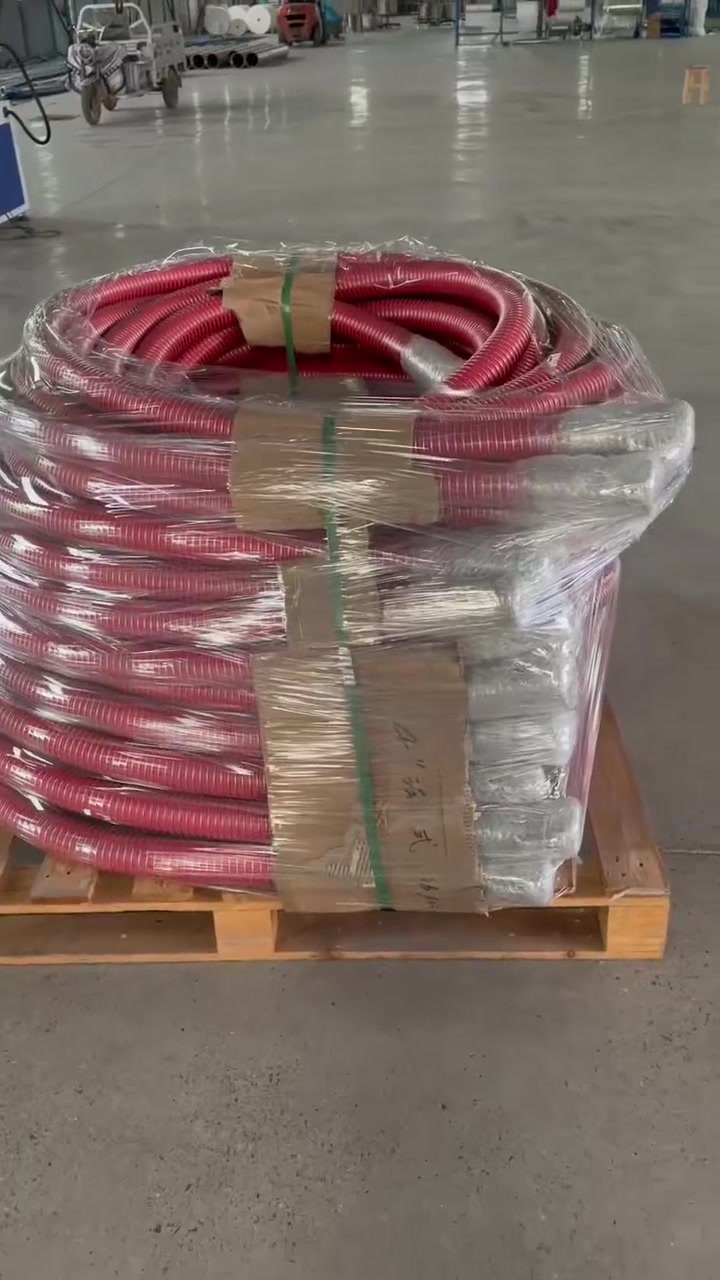

Related Video
Product Video08
Product Video06
Product Video05
Product Video3
Industry Application
-
Energy & Chemicals
Crude oil transportation, tanker loading and unloading on land/sea platforms
Transmission of acidic and alkaline chemical media, eliminating the risk of galvanic corrosion of metal pipelines -
Shipping
Fuel filling and ballast water transfer for ships
Equipped with anti-static certification to meet IMO International Maritime Safety Code. -
Food & Pharmaceutical
FDA certified material, meets GMP cleanliness standard
Liquid raw materials, CIP cleaning system dedicated pipeline -
Industry
Hydraulic system, compressed air transportation
Replacement of rigid piping, solving the problem of complex space piping
Six Core Advantages
Lightweight and portable
Weight is only 1/5 of the same specification metal pipe, reducing the intensity of manual operation and logistics costs
Flexible and anti-flexing
Minimum bending radius up to 4 times the diameter of the pipe, increasing the adaptability of the installation by 80%
Zero Maintenance Costs
No corrosion and delamination, service life of more than 10 years
Safe and Explosion-proof
Multilayered anti-static design, eliminating the risk of working in a flammable environment
Environmental Protection and Energy Saving
The whole process of no-leakage design, reducing the loss of medium and environmental pollution
Customized service
Support for rapid customization of caliber (1"-12"), length, and connector form.
Qualification
Tianhua New Material Technology Co., Ltd. has been certified by UDEM, and its products comply with UDEM and other international authoritative standards. Equipped with a full-process quality tracking system, from raw material testing to finished product burst testing, to ensure that every meter of hose meets the requirements of industrial-grade reliability.
Choosing Tianhua composite
hoseis not only choosing a product,
but also choosing the
7×24 hours professional technical support
Worldwide 1-year long warranty
Industry-leading total fluid transfer solutions
